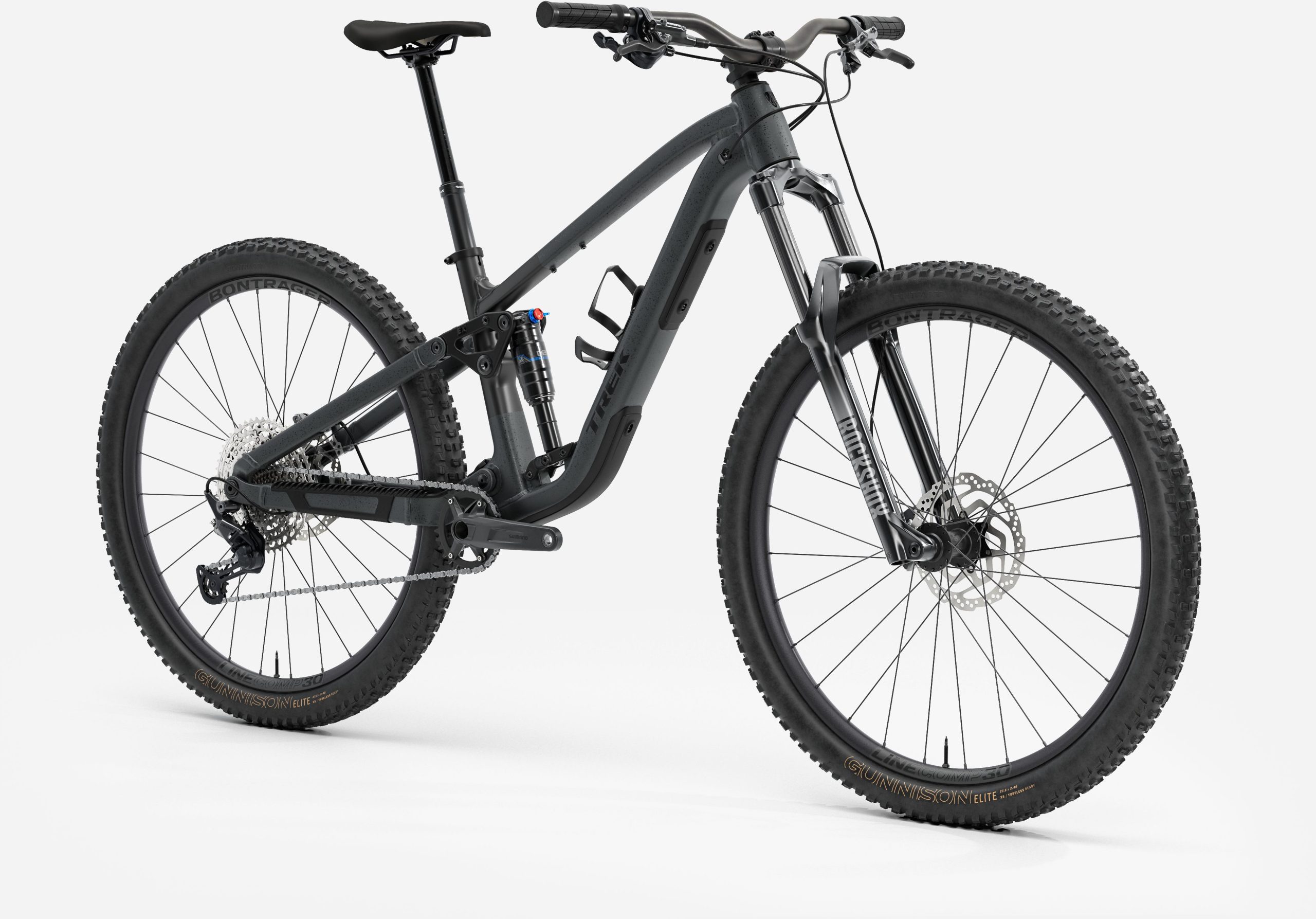

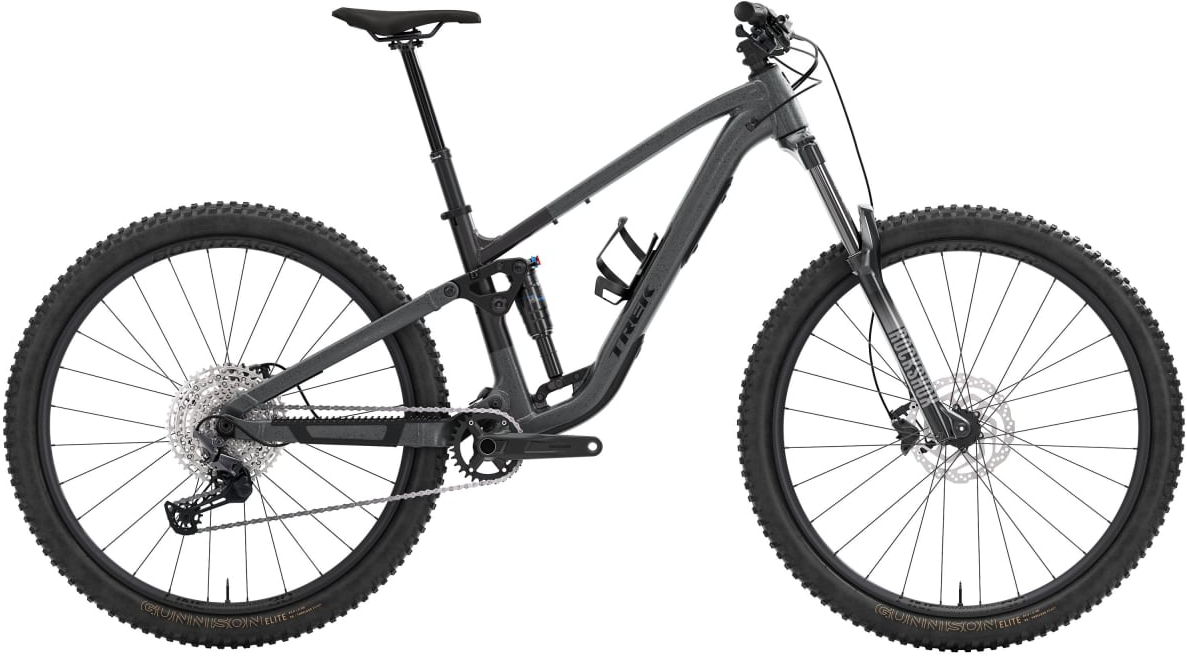

Trek Fuel EX 5 Trail Bike 29″ Wheel, 12-Speed Deore

Description

Trek Fuel EX 5 Trail Bike 29″ Wheel, 12-Speed Deore

A trail bike that only handles one kind of trail isn’t much of a trail bike. The Trek Fuel EX 5 is built around that problem, with adjustable travel between 145mm and 160mm, so the same frame can be tuned toward a more efficient, pedal-friendly setup or a longer-travel, more capable descender depending on how it’s set up. It runs a RockShox Recon Silver RL fork with 150mm of travel and an X-Fusion Pro 2 rear shock, a 12-speed Shimano Deore drivetrain with a 10-51T cassette range wide enough to climb almost anything, and a TranzX dropper post with 170mm of travel for genuine room to move on descents. Tubeless-ready wheels come set up for lower rolling resistance and fewer pinch flats out of the box. At 17.02kg, it’s not the lightest bike in Trek’s range, but it’s built with real trail hardware Active Braking Pivot suspension, a Boost148 rear axle, in-frame storage rather than a lightweight build that cuts corners on durability.

Trek Fuel EX 5 Overview

The Fuel EX 5 sits in Trek’s full-suspension trail range, built around an Alpha NEXT Platinum aluminium frame with adjustable leverage rate flipping a chip in the lower shock mount changes how progressive the suspension feels, giving more bottom-out resistance without sacrificing small-bump sensitivity, or vice versa. The frame comes in three configurations across the Fuel range (EX for do-it-all capability, MX for a more playful feel, LX for aggressive descending), with this build representing the EX configuration.

Active Braking Pivot lets Trek’s engineers tune how the rear suspension responds to braking and acceleration forces independently, rather than as one compromised setting. In practice, that means the suspension stays active and controlled even when a rider is braking hard into a corner, rather than locking up or feeling harsh.

Trek Fuel EX 5 Features and Benefits

Adjustable travel and leverage
The frame supports adjustable travel between 145mm and 160mm, letting a rider tune the bike toward efficiency or capability depending on the terrain. A flip-chip in the lower shock mount adjusts leverage rate, changing how progressive the suspension feels without needing a shock swap.

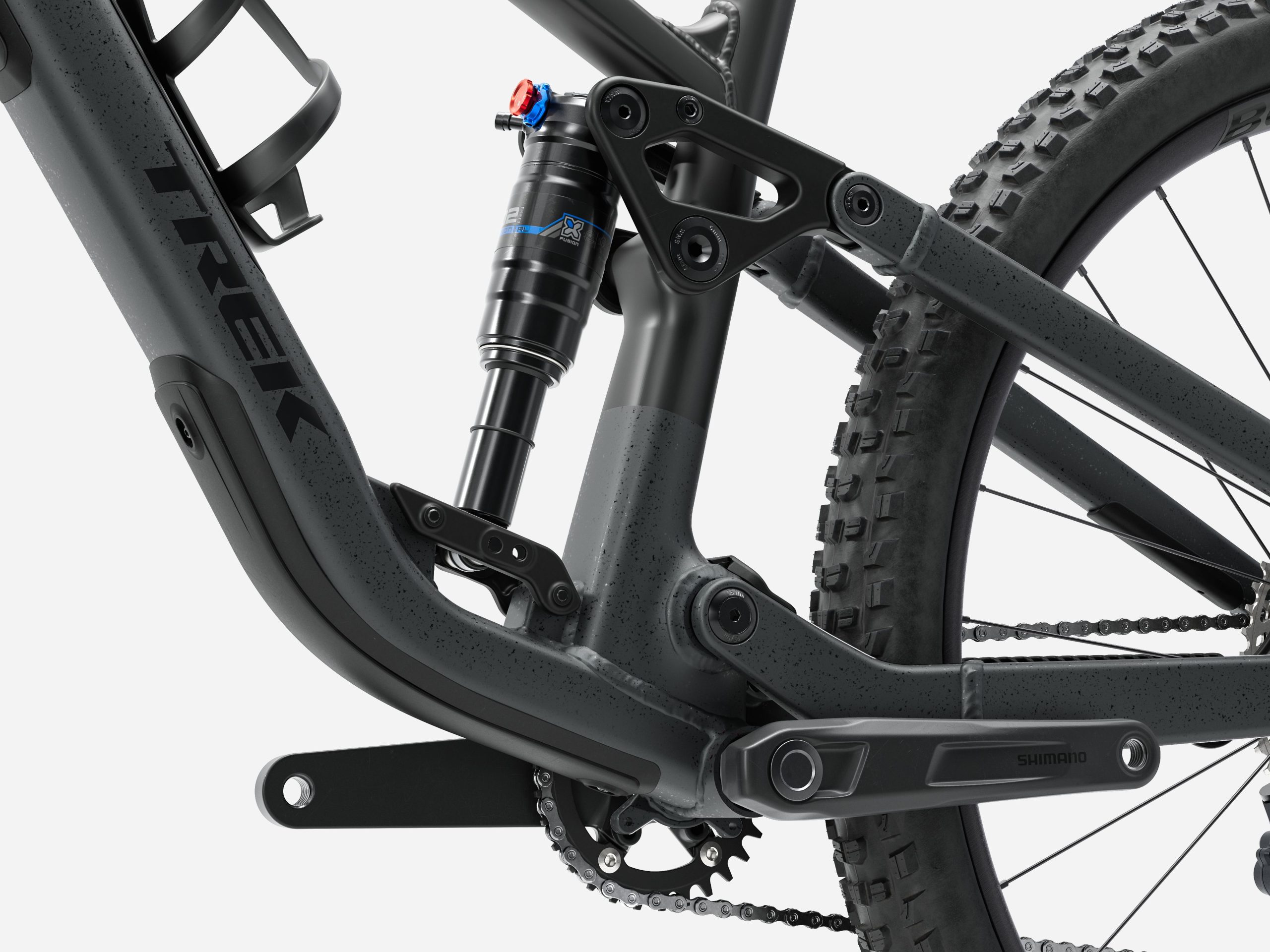

Suspension
A RockShox Recon Silver RL fork runs a Solo Air spring, Motion Control damper, and lockout, with 150mm of travel on a tapered steerer and a 15mm Maxle Stealth thru-axle. Paired with an X-Fusion Pro 2 rear shock, the suspension is built for genuine trail use rather than light gravel riding.

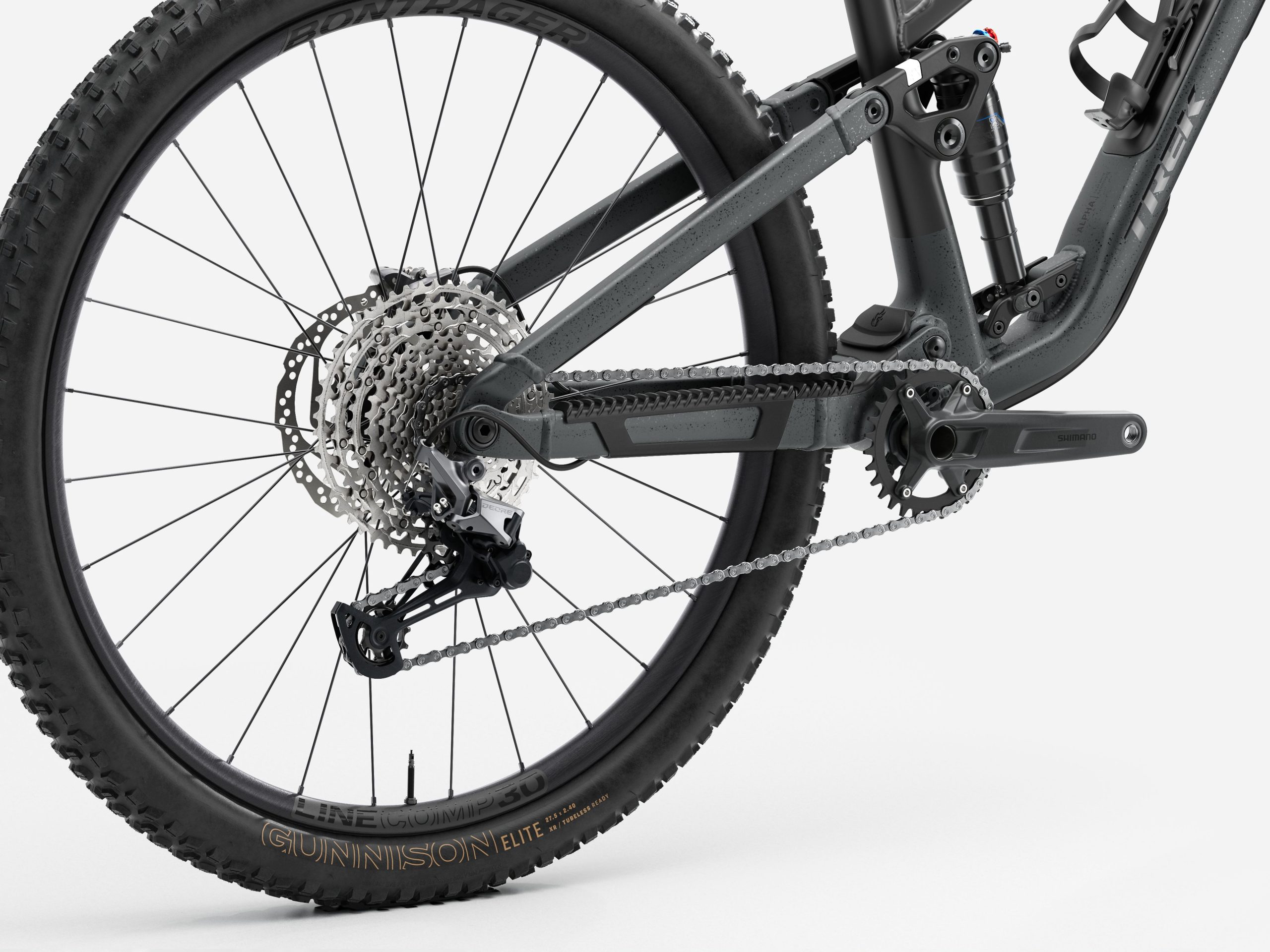

12-speed Shimano Deore drivetrain
The Shimano Deore M6100 groupset covers shifter, rear derailleur, cassette, and chain, with a 10-51T cassette range that’s wide enough to handle steep, sustained climbs without needing a front derailleur.

Dropper post
A TranzX JD-YSI34 dropper post with 170mm of travel and internal routing gives real room to move the saddle out of the way on descents, a feature that matters more on genuinely technical trail terrain than shorter-travel droppers.

Tubeless-ready wheels and tyres
Bontrager Line TLR 30 wheels come tubeless-ready, paired with Bontrager Gunnison Elite XR tyres at 29×2.40″. Running tubeless lowers rolling resistance slightly and significantly reduces pinch-flat risk compared to a tubed setup.

Braking
Shimano hydraulic disc brakes with 180mm rotors front and rear give strong, consistent stopping power, important on a bike built for genuine descending rather than just fire roads.

Storage and mounts
In-frame storage and top tube accessory mounts let a rider carry tools, a tube, or snacks without a backpack, and the downtube and shuttle guards protect the frame from chain slap and shuttle-truck transport damage.

Technical Specifications

The rear shock is listed as an X-Fusion Pro 2 in the manufacturer’s product copy, but detailed specifications for it weren’t included in the supplied spec sheet. That detail can be confirmed before publishing if needed.

Applications and Industries

• Technical singletrack and mixed trail terrain
• Riders wanting adjustable travel to tune the bike between efficiency and capability
• Bike park or shuttle-assisted riding, aided by the frame’s shuttle guard
• Long trail days needing in-frame storage for tools and supplies
• Riders moving up from a hardtail into full suspension

Why Choose This Trek Fuel EX 5 Trail Bike

Most bikes in this category pick a single point on the travel spectrum and stay there. The Fuel EX 5’s adjustable travel (145-160mm) and flip-chip leverage rate mean a rider can actually tune the bike’s character rather than being locked into one setup from the factory. Active Braking Pivot suspension keeps the rear end composed under braking, which matters more on technical descents than most spec sheets communicate. Combined with a wide-range 12-speed drivetrain, a proper 170mm dropper post, and tubeless-ready wheels, this is a bike built with real trail-riding priorities, not a cross-country bike wearing trail styling.

Quality Standards

Trek builds the Fuel EX 5’s frame from Alpha NEXT Platinum aluminium with the same engineering rigor applied across its full-suspension range, and the ZS headset standard leaves room for aftermarket upgrades like angle-adjust headsets later.

Packaging Options

Bikes typically ship partially assembled in protective packaging, with final assembly (front wheel, handlebar, pedals, suspension setup, brake and gear adjustment) completed by a dealer or an experienced home mechanic.

Shipping and Export Information

Shipping timelines and export documentation vary by destination and order volume. Customers ordering internationally or in bulk should confirm current lead times and freight options directly with YM Racing.

Frequently Asked Questions

What does “adjustable travel” mean on this bike?
The frame supports travel between 145mm and 160mm, letting a rider tune the bike toward a more efficient or more capable setup depending on preference and terrain.

What’s the difference between the EX, MX, and LX Fuel configurations?
EX is built for do-it-all capability, MX leans toward a more playful, pop-happy feel, and LX is set up for more aggressive descending. This build is the EX configuration.

What is Active Braking Pivot?
It’s Trek’s suspension design that lets engineers tune how the rear suspension responds to braking and acceleration forces separately, keeping the suspension active and controlled under braking.

How many gears does the Fuel EX 5 have?
12 speeds, through a Shimano Deore M6100 drivetrain with a 10-51T cassette range.

Does it come with a dropper post?
Yes, a TranzX JD-YSI34 dropper post with 170mm of travel and internal routing.

Are the wheels tubeless-ready?
Yes. Bontrager Line TLR 30 wheels come tubeless-ready, reducing pinch-flat risk and rolling resistance compared to a tubed setup.

What sizes does the Fuel EX 5 come in?
Four sizes: S, M, L, and XL.

How much does the bike weigh?
17.02kg as specced from the factory.

Does the frame have storage?
Yes, in-frame storage plus top tube accessory mounts for carrying tools or supplies without a backpack.

What colours are available?
Gloss Fury Red/Matte Dark Carmine and Lithium Grey/Trek Black Splatter.

Is this bike suited to bike park or shuttle riding?
It includes a shuttle guard on the frame, which protects against damage during shuttle-truck transport, making it a reasonable option for shuttle-assisted riding.

Is assembly required after delivery?
Most bikes ship partly assembled. Suspension setup, brake bleeding, and gear adjustment should be completed by a shop or an experienced home mechanic.

Conclusion

The Trek Fuel EX 5 is built around genuine adjustability rather than a single fixed setup travel, leverage rate, and suspension tuning can all be adapted to match how and where someone actually rides. A wide-range 12-speed drivetrain, a proper-length dropper post, and tubeless-ready wheels round out a build focused on real trail performance rather than spec-sheet padding. For a rider who wants one full-suspension trail bike that can be tuned rather than replaced as riding style develops, the Fuel EX 5 is a genuinely capable option.
