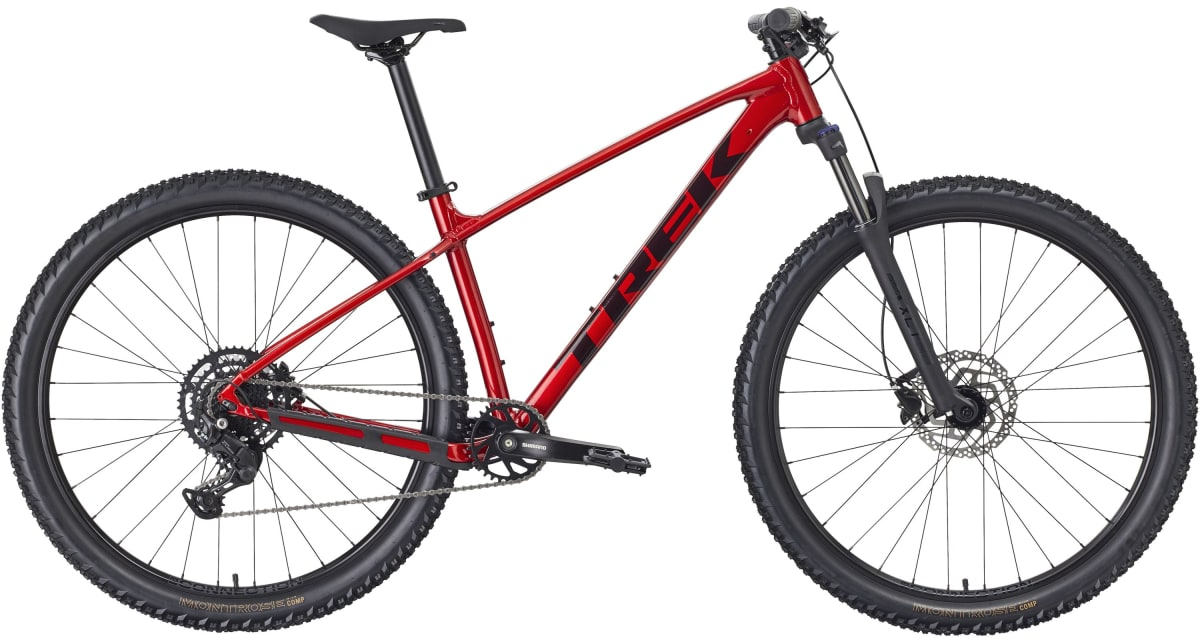

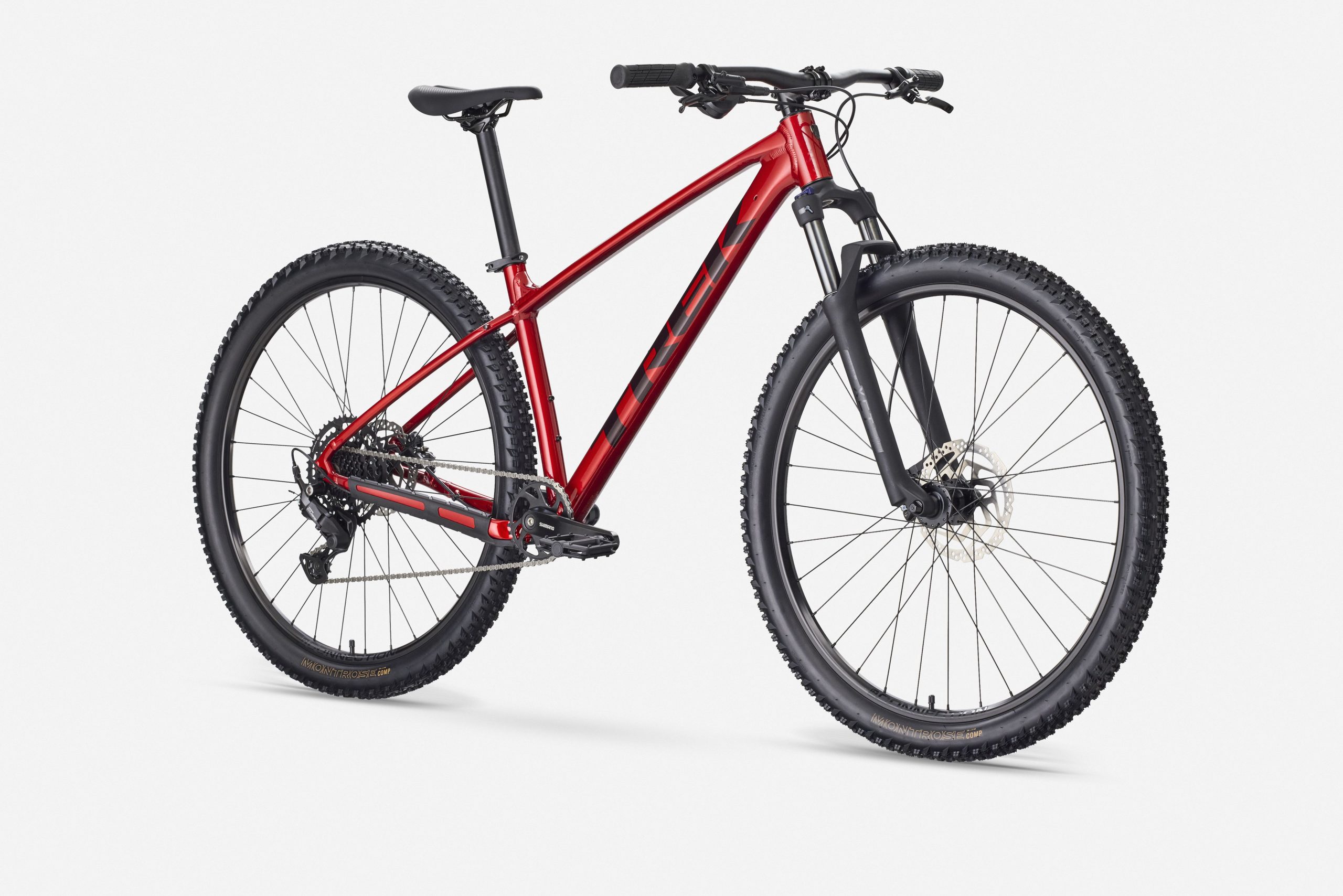

Trek Marlin 5 Mountain Bike 29″ Wheel, Shimano CUES 9-Speed

Bike fit gets treated as an afterthought more often than it should, and it’s usually the reason a bike feels wrong even when the components are good. The Trek Marlin 5 mountain bike starts from the opposite direction seven frame sizes, from XS to XL, each one built to genuinely fit the rider standing over it, not just scaled up from a single template. It runs 29″ wheels, a Shimano CUES 9-speed drivetrain built for long-term durability rather than just smooth shifting out of the box, and a suspension fork with a hydraulic lockout so a rider can firm up the front end for pavement sections and open it back up for trail. Rack and kickstand mounts are built into the frame, and internal cable routing keeps shift and brake lines protected from weather and grit. At 15.1kg, it’s a genuine trail bike that also holds up as a daily commuter, without asking a rider to choose between the two.

Trek Marlin 5 Overview

The Marlin 5 sits above the entry-level Marlin 4 in Trek’s range, built around 29″ wheels instead of 27.5″, a bigger jump in rollover capability that matters more on rougher, rootier trail sections. Smaller frame sizes on this model use a curved top tube that dips toward the seat tube, lowering standover height so shorter riders can straddle the bike comfortably. Larger sizes switch to a straight top tube, since taller riders with longer legs don’t run into the same standover issue. The smallest frame sizes also get shorter-reach brake levers and narrower handlebars, adjustments that make a real difference for smaller-handed or shorter-armed riders rather than just shrinking the whole bike uniformly.

Trek Marlin 5 Features and Benefits

Suspension with lockout

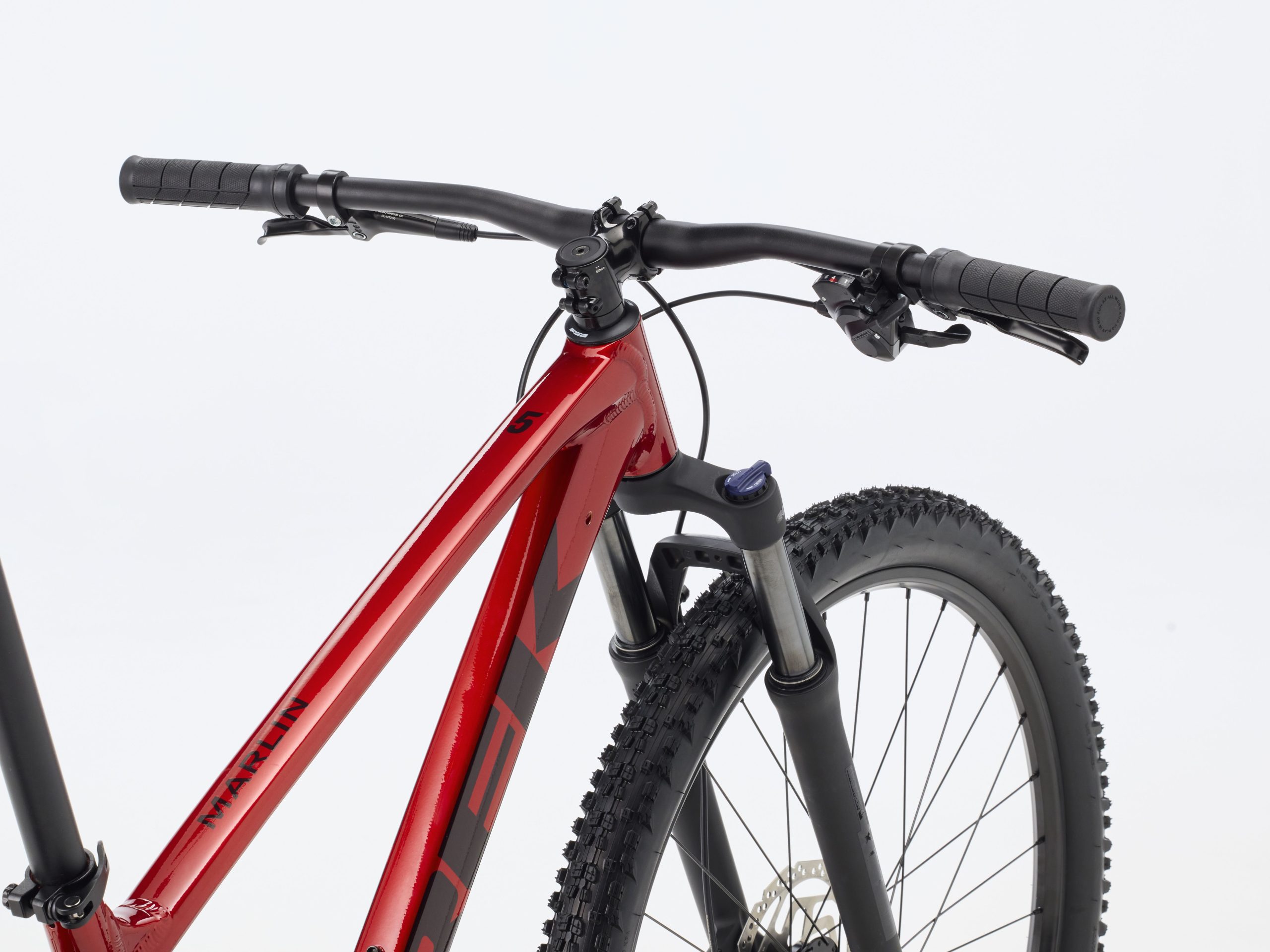

The SR Suntour XCT 30 fork runs a coil spring with preload adjustment, 100mm of travel, and a hydraulic lockout. That lockout matters for a bike meant to double as a commuter a rider can lock the fork out for a smooth, efficient ride on pavement, then open it back up the moment the terrain gets rough.

Shimano CUES drivetrain
The 9-speed Shimano CUES U4000 groupset uses Shimano’s LINKGLIDE technology, engineered specifically for extended wear life on the chain, cassette, and chainring compared to standard road-derived drivetrains. That durability focus matters on a bike that’s likely getting ridden year-round rather than babied for weekend outings. The Shimano LINKGLIDE LG300 cassette runs an 11-46 range, giving a genuinely low climbing gear alongside enough top-end for faster sections.

Sizing and fit
Seven frame sizes (XS through XL) mean fit is based on actual body proportions, not a generic small/medium/large split. Trek’s Smart Wheel Size approach also means the wheel size is matched to frame size for the best rollover-to-handling balance at each height.

Braking
Shimano RT26 disc brakes, 6-bolt, with rotor sizing that varies by frame size (180mm or 160mm), giving proportionally matched stopping power depending on rider weight and frame size.

Everyday practicality

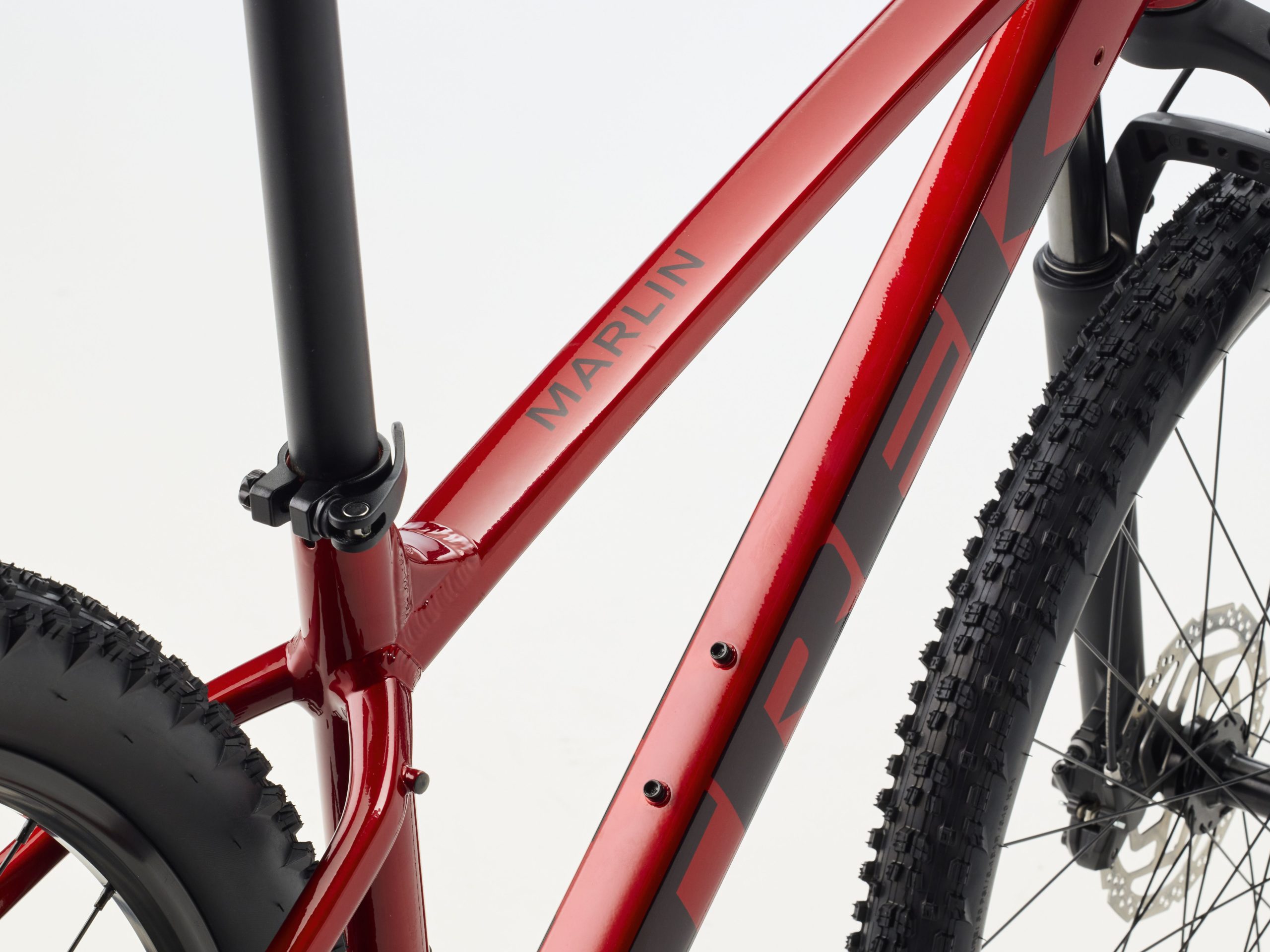

Internal routing for shift and brake cables protects lines from weather and trail grit, extending their working life. Rack and kickstand mounts are built into the frame, so the bike converts to a commuter setup without any frame modification.

Lower-emission aluminium
Trek has been shifting its alloy bike production toward lower-emission aluminium made with renewable energy since 2024, and the Marlin 5’s frame is part of that switch as of the most recent production run.

Technical Specifications

Brake rotor size and handlebar width may vary slightly by frame size, matched to rider proportions. Current spec by size can be confirmed before ordering.

Applications and Industries

• Singletrack and mixed-terrain trail riding
• Daily commuting, using the fork lockout for efficient pavement riding
• Riders wanting one bike for both trail weekends and weekday commutes
• Shorter or smaller-framed riders needing genuinely proportioned smaller sizes, not just a shrunk frame
• Riders prioritizing long-term drivetrain durability over frequent part replacement

Why Choose This Trek Marlin 5 Mountain Bike

The Marlin 5’s biggest advantage isn’t a single spec, it’s how the whole bike is proportioned. Seven frame sizes with size-specific brake levers, handlebar widths, and rotor sizing mean a shorter or smaller rider isn’t just getting a scaled-down version of a bike built for someone taller. The Shimano CUES drivetrain with LINKGLIDE technology is built specifically for wear-life, which matters for anyone riding through varied conditions year-round rather than storing the bike for six months at a time. Add a lockout fork that makes commuting efficient and trail riding capable, and this is a bike built around how people actually use it, not just a spec sheet meant to look impressive.

Quality Standards

Trek applies consistent frame engineering and testing standards across the Marlin range, and as of the most recent production runs, this frame is built using lower-emission aluminium as part of Trek’s broader manufacturing shift toward renewable-energy alloy production.

Packaging Options

Bikes typically ship partially assembled in protective packaging, with final assembly (front wheel, handlebar, pedals, brake and gear adjustment) completed by a dealer or a qualified home mechanic.

Shipping and Export Information

Shipping timelines and export documentation vary by destination and order size. Customers ordering internationally or in bulk should confirm current lead times and freight options directly with YM Racing.

Frequently Asked Questions

What size wheels does the Marlin 5 use?
29″ wheels, front and rear, giving better rollover on rough trail sections compared to the 27.5″ wheels on the Marlin 4.

What is Shimano CUES, and why does it matter?
CUES is Shimano’s drivetrain platform built around LINKGLIDE technology, engineered for longer wear life on the chain, cassette, and chainring compared to standard drivetrains.

Does the suspension fork have a lockout?
Yes. The SR Suntour XCT 30 fork has a hydraulic lockout, letting a rider firm up the front end for pavement and open it back up for trail riding.

How many gears does the Marlin 5 have?
9 speeds, with an 11-46 cassette range for a wide spread between climbing and higher-speed gears.

Why does frame size affect brake rotor size?
Smaller frames typically pair with smaller rotors and shorter-reach brake levers, matching stopping power and hand fit to a smaller or lighter rider.

What does “curved top tube” mean, and does it affect fit?
Smaller frame sizes use a curved top tube that lowers standover height, making it easier for shorter riders to straddle the bike. Larger sizes use a straight top tube instead.

How many frame sizes are available?
Seven, from XS through XL, so fit is based on actual rider height and proportions rather than a generic sizing split.

Can this bike handle daily commuting as well as trails?
Yes. It has rack and kickstand mounts built into the frame, and the fork lockout makes pavement riding more efficient when it’s being used as a commuter.

How much does the Marlin 5 weigh?
15.1kg as specced from the factory.

What colours are available?
Fury Red, Miami Green/Dark Aquatic Fade, and Mulsanne Blue.

Is the frame made with lower-emission aluminium?
Yes. As of the most recent production runs, this frame uses aluminium made with renewable energy as part of Trek’s broader manufacturing shift.

Is assembly required after delivery?
Most bikes ship partly assembled. Final setup, including brake and gear adjustment, should be completed by a shop or an experienced home mechanic.

Conclusion

The Trek Marlin 5 earns its place above the Marlin 4 through genuine upgrades, not just a bigger number in the name. Bigger 29″ wheels, a lockout-equipped suspension fork, and a Shimano CUES drivetrain built for durability make it a bike that holds up to real trail use and daily commuting alike. Seven frame sizes with size-specific fit details mean it’s built to actually match the rider on it, not just get close enough. For anyone looking for one mountain bike that handles both weekend trails and weekday miles without compromise, the Marlin 5 delivers.
